Mps pulverizer roll

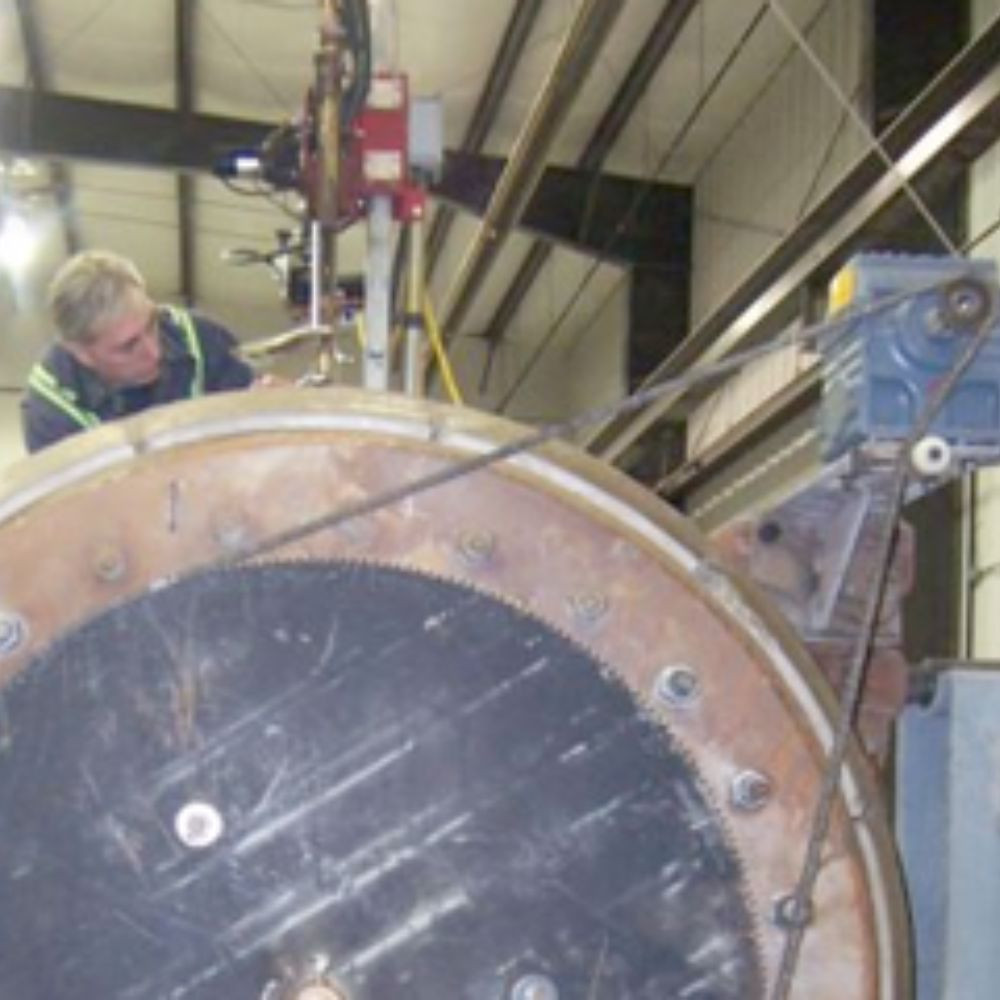

These pictures show an MPS Pulverizer roll located on its mill mounting chock. The weld automation was mounted off the chock as shown using a custom angle plate. A stanchion was built to hold the 2 clevises that support the roll in the pulverizer. A large sprocket with a gear motor is used to rotate the roll at weld speeds and was supplied by the customer although it is controlled by the Mavrix control.
